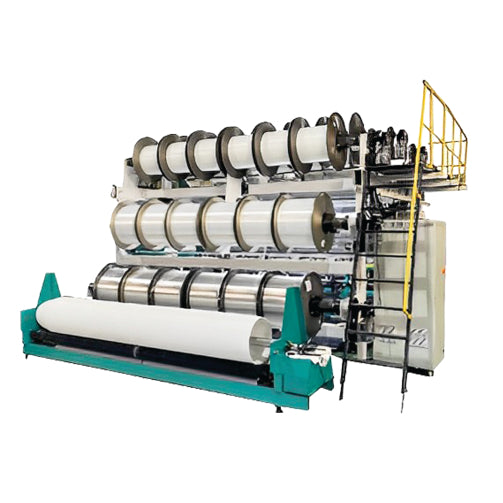

JFRDJ7/1 DIGITAL HIGH SPEED DOUBLE NEEDLE BAR WARP MACHINE
Couldn't load pickup availability
Description
APPLICATIONS
After finishing and processing, the fabric can be transformed into short-pile fabrics with a pile height ranging from 1.5 to 6mm or sandwich mesh fabrics with a spacing of 3 to 12mm. These fabrics feature a plush and soft texture, with the wool yarn securely looped to prevent detachment from the base cloth. They are widely used in applications such as car seat cushions, sand release, Simmons bedding, cotton blankets, curtains, and other household decorative fabrics, as well as clothing and footwear materials.
The machine is powered by a complete eccentric mechanism or crankshaft connecting rod mechanism, enabling higher operating speeds. The needle slot plate is fixed to ensure fabric tightness, and an unloading device allows the settling plate bed to swing away from the working area for ease of operation. The combination of electronic let-off and a laser yarn-breaking automatic stop device ensures efficient high-speed operation and user convenience. Additionally, this machine is equipped with up to 7 comb belts and can include electronic lateral movement, enhancing its ability to meet diverse customer needs.
TECHNICAL PARAMETER
|
Needle Type |
Latch Needle |
|
Gauge |
E18 E22 E24 |
|
Working Width |
100, 138, |
|
Guide Bars |
2,6 |
|
Double Pile Height |
2-12 mm |
|
Main Drive |
Oil-immersed cam, Eccentric Linkage |
|
Max Speed |
550 rpm |
|
Pattern Drive |
N-Pattern Drive, Chain Link or Pattern disk (Optional: Electronic Control) |
|
Yarn Let-off Device |
EBC Electronic Yarn let -off |
|
Fabric Take-Up |
Electronic Take-Up |
|
Batching Device |
Independent Batching Device |
|
Main Motor Power |
7.5 Kw |
