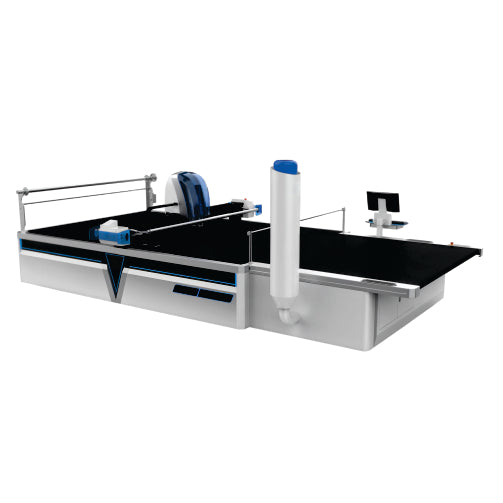

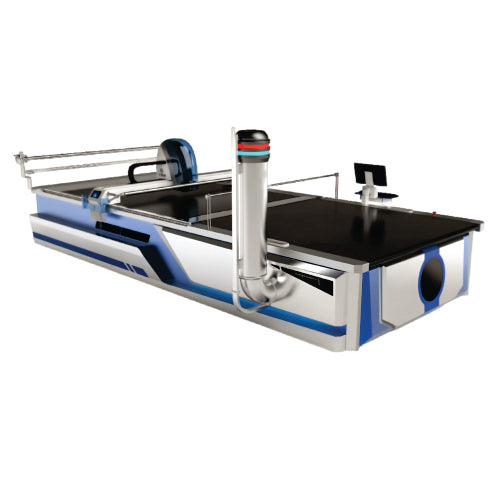

Multi Layer Cutting
  • Vendor:

    Ramana Machines

Description

TECHNICAL DATA

Max Cutting Height

(TE 6cm/9cm (after Vac-sorb ))

(TC 3, 5, 7, 9cm (after Vac-sorb ) )

Cutting Window

Length (No Limitation), Width (No Wider Than The fabric width)

Working Width (Y)

1700"/2000mm / 2200mm

66"/78"/86"

Normal Working Width

2500mm/3300mm

98"/129"

Electricity

Three phase 380V, 50 ~ 60Hz

Power Consumption

18KW Max

CAD & CAM Connect Way

Ethernet communication / USB Flash memory

Max Speed of Blade Working

(TE 6000RPM)

(TC 5000RPM)

Compressed Air

0.55Mpa 160L/min

Cutting Speed

(TE-60000mm/min)

(TC-50000mm/min)

Acceleration

(TE - 0.8~ 1g (N/Kg)

(TC -0.6~0.8g (N/Kg)

Noise Level

< 75 dbA



MAIN FEATURES

·        Proprietary Cutting Software: Features patented cutting software for optimal performance.

·        High Efficiency and Precision: Delivers exceptional accuracy with superior efficiency.

·        Ease of Use: Designed for simple operation with enhanced safety features.

·        User-Friendly Interface: Promotes higher productivity and effortless control.

·        Intelligent Cutting Design: Ensures precise and consistent results.

·        Cost-Effective Maintenance: Low-cost consumables and easy maintenance reduce operational
