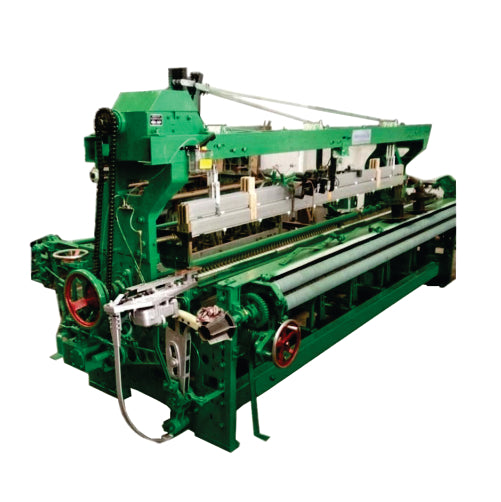

SGD788 SHUTTLELESS RAPIER LOOM
  • Vendor:

    Ramana Machines

Description

This loom is designed for weaving blended yarn, fancy yarn, crepe yarn, natural fabrics, cotton, wool, and linen.

FEATURES



The SGD788 Shuttle less Jute Rapier Loom offers significantly higher speeds compared to shuttle looms. This versatile loom is capable of producing a wide range of fabrics, including bed sheets, curtains, sofa covers, Indian sarees, stoles, shawls, towels, and plain fabrics.

MAIN SPECIFICATIONS

Reed width(cm)

180 200 210 230 260 280 300 340 360 380 400 420 460 500 530 560 580

Rotation speed (R.P.M)

150-200

Sheading device weft selection

Electronic dobby, ready for jacquard, tappet, cum 6 Colors(mechanical or electronic)

Yarn count

Catton 7-50Ne Wool 12-100Nm Chemical fabric 100-650D

Dia.of warp beam (mm)

600

Dia.of rolling-up (mm)

400

Number of heald frame

<16 frames

Insertion rate (m/min)

300-400

Electrical control

P.L.C

Motol power (KW)

1.5-1.8 KW

Weight (kg)

1700-2200

Overall size (mm)

3300*1827*2120 (330cm/130)
