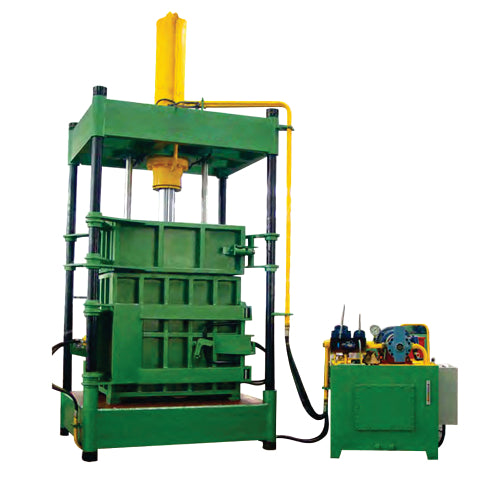

Y82 SERIES VERTICAL NON - METAL BALER
  • Vendor:

    Ramana Machines

Description

APPLICATIONS

The Y82 Series Vertical Non-Metal Baler is ideal for compressing and baling various non-metallic materials, including waste paper and cardboard, plastic film and bottles, cotton yarn, waste cotton, cloth, sacks, hairballs, straw, and similar materials.

FEATURES

·        Compact vertical design requiring minimal floor space.

·        Constructed with a robust and durable steel frame for long-lasting performance.

·        Hydraulic drive system ensures simple, reliable, and efficient operation.

TECHNICAL SPECIFICATIONS

Model

Main Cylinder

Pressure (ton)

Press Box Size

(LxHxW/mm)

Bale Size

(WxH/mm)

Bale Weight – Waste Cartons(kg)

Main motor

(kw)

Y82/T-25F

25

1100x800x1650

1100x800

120~180

15

Y82/T-35F

35

1100x750x1500

1100x750

200~250

15

Y82/T-63F

63

1100x900x1500

1100x900

200-300

15

Y82/T63FB

63

1100x1100x1600

1100x1100

300-350

15

Y82/T-100FB

100

1100x1100x1600

1100x1100

350~400

18.5


Y82 Series (Wool Ball) Vertical Baler Technical Parameters

Model

Main Cylinder

Pressure (ton)

Press Box Size

(LxHxW/mm)

Bale Size

(WxH/mm)

Number of hair balls per Package (kg)

Main motor

(kw)

Y82-120Q

120

1120x780x2250

1120x780

24/36

15

Y82-200Q

200

1100x780x2250

1100x780

36/42

15

Y82-315Q

315

1100x780x2700

1090x780

36/42

15



Y82 Series (PET Bottle) Vertical Baler Technical Parameters

Model

Main Cylinder

Pressure (ton)

Press Box Size

(LxHxW/mm)

Bale Size

(WxH/mm)

Bale Weight (kg)

Main motor

(kw)

Y82-30F

30

1100x550x2000

1100x550

100

11



Y82 Series (Cloth) Vertical Baler Technical Parameters

Model

Main Cylinder

Pressure (ton)

Press Box Size

(LxHxW/mm)

Bale Size

(WxH/mm)

Head to table Dimensions Max (mm) /Min(mm)

Main motor

(kw)

Y82-25B

25

1200x750

1100x680

1250/350

15

Y82-160B

160

1215x550

1215x500

1000/200

22



Y82 Series (Yarn ,waste cotton) Vertical Baler Technical Parameters

Model

Main Cylinder

Pressure (ton)

Press Box Size

(LxHxW/mm)

Bale Size

(WxH/mm)

Bale Weight (kg)

Main motor

(kw)

Y82-25M

25

980x430x1500

980x43

70

15
