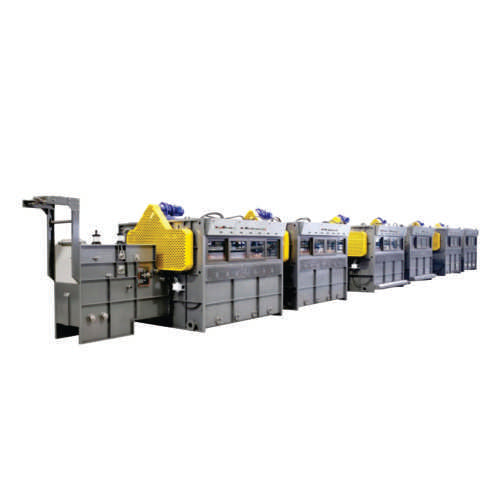

YXLM 1878 LONG LOOP STEAMER

Description

Full Automatic Cloth Brake Mechanism
This flexible design replaces manual operations, saving installation space and automatically adjusting the uniformity of cloth within the box. It prevents personal injury and chemical damage.

Automatic Uniformity Detecting Mechanism
Highly automated, this system responds quickly. When triggered, it sends execution signals to the actuator, which performs adjustments while the machine continues running without interruption.

Fully Automatic Solid and Liquid Feeding System
The system is highly maneuverable, allowing the feeding amount of sodium hydrosulfite to be set according to customer requirements. The solid powder feeding tank has a 300L capacity, with a rated feeding amount of 25 kg/h and no manual refilling required for up to 8 hours.

• Solid powder feeding saves 30% of costs.
  The liquid auxiliary feeding system, using micro-metering pumps, requires no manual adjustments and supports liquid supply ranging from 10L/h to 150L/h, saving 40% on costs. This system eliminates safety hazards and reduces worker burden, improving environmental cleanliness and preventing chemical exposure.

Concealed Box Structure
The fully automatic rinsing machine features a sealed structure that significantly reduces energy consumption, unlike conventional open-box designs that waste water, gas, and air.

Anti-Bubble Hole and Knotting Detection Structure
This mechanism detects and prevents issues such as fabric floating or sinking, which can cause knots.

Efficient and Energy Saving
In a 24-hour rayon washing process, the output is 80,000 meters, using 150 tons of water, demonstrating significant energy and resource efficiency.

Electrical Control System
The PLC automatic control system can connect to the ERP system, offering data visualization and real-time monitoring. It allows machine speed to reach 100 m/min, and displays immersion chamber capacity and meters run, with alarms to quickly identify failure points.
