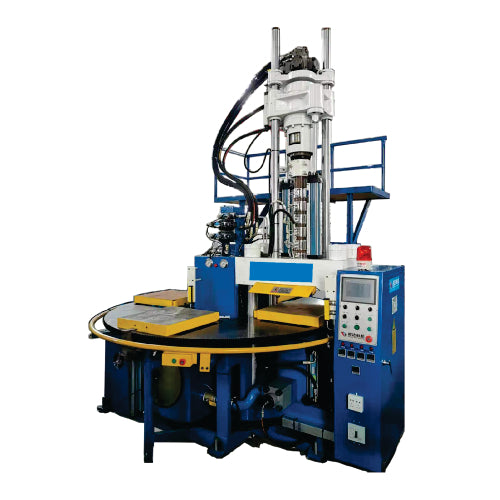

Automatic 4 Station Upper Vertical Injection Molding Machine
Couldn't load pickup availability
Description
FEATURES
· This machine is ideal for manufacturing monochrome shoelaces, bottom pads, and insert-moulded parts.
· It features fully automatic computer control with a PLC and user-friendly human-machine interface, ensuring simplicity of operation and excellent usability.
· The sturdy design provides high clamping force, convenient Mold adjustment, and broad product adaptability.
· Injection is controlled using an electronic ruler for precise material measurement, ensuring high accuracy and consistent product quality.
· The vertical injection design facilitates easy maintenance, conserves space, and ensures a compact structure.
· Equipped with a full servo system and high-quality hydraulic components, it offers low oil temperature, high energy efficiency, and a long service life.
· Safety features include protective doors, safety bars, and hydraulic protection, ensuring safe production operations.
MAIN SPECIFICATION
|
Model |
RM-31L133Y-PB (3 Stations ) |
RM-31L133Y-SB ( 3 Stations ) |
|
RM-41L133Y-PB (4 Stations ) |
RM-41L133Y-SB ( 4 Stations ) |
|
|
RM-51L133Y-PB ( 5 Stations ) |
RM-51L133Y-SB ( 5 Stations ) |
|
|
RM-61L133Y-PB ( 6 Stations ) |
RM-61L133Y-SB ( 6 Stations ) |
|
|
Raw Material |
PVC, TPR , TPU |
|
|
Machine Size (LxWxH) |
2.6 x 2.2 x 3.1 ( 3 stations ) 2.9 x 2.5 x 3.1 ( 5 stations ) |
2.8 x 2.4 x 3.1 ( 4 stations ) 2.8 x 2.4 x 3.1 ( 6 stations ) |
|
Motor |
3 Phase Asynchronous motor |
AC Permanent Magnet Servo Motor |
|
Motor Power |
15.5 kw |
11 kw |
|
Electric Heat |
6.3 kw |
6.3 kw |
|
Screw Diameter |
55 mm |
|
|
Screw Speed |
50 - 300 r/min |
|
|
Opening Stroke |
230 mm |
|
|
Mold Size |
480 x 480 x 30 mm |
|
|
Injection Volume |
300 g |
|
|
Clamping Force |
180 tons |
|
|
Output |
300 pairs / h |
|
|
Weight |
4.5 tons ( 3 Stations ) 5.1 tons ( 5 Stations ) |
4.8 tons ( 4 stations ) 5.5 tons ( 6 stations ) |
