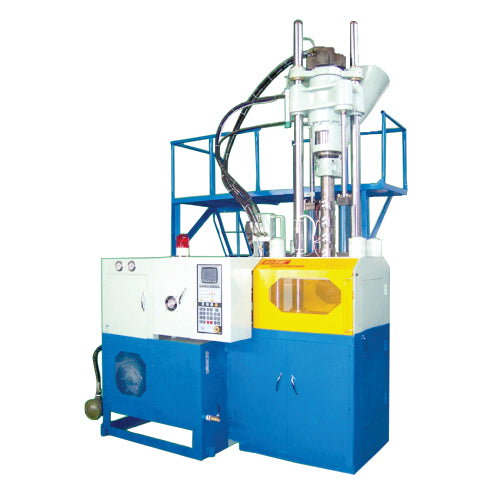

Automatic Monochrome Upper Vertical Injection Molding Machine
  • Vendor:

    Ramana Machines

Description

FEATURES

·        This machine is designed for producing monochrome shoelaces, bottom pads, and insert-molded components.

·        It features fully automatic computer control with PLC and a user-friendly human-machine interface, ensuring ease of operation and strong usability.

·        The robust construction provides high clamping force, convenient mold adjustments, and broad product adaptability.

·        Material injection is controlled with an electronic ruler for precise measurement and stable product quality.

·        Vertical injection design ensures easy maintenance, a compact structure, and efficient space utilization.

·        Equipped with a full servo system and high-quality hydraulic components, it offers low oil temperature, energy efficiency, and a long service life.

·        Safety features include safety doors, safety bars, and hydraulic protection, ensuring secure production operations.

MAIN SPECIFICATION

Model

RM-11L133-PB

RM-11L133-PB

Motor

3 Phase Asynchronous Motor

AC Permanent Magnet Servo Motor

Motor Power

15 kw

11 kw

Electrical Heat

6.3 kw

6.3 kw

Raw Material

PVC, TPR, TPU

Opening Stroke

280 mm

Screw Speed

50 - 300 r/min

Machine Size (LxWxH )

2.2 x 1.3 x 3.2 m

Screw Diameter

55 mm

Mold Size

480 x 480 x 30 mm

Injection Volume

300 g

Clamping Force

180 tons

Output

250 pairs / h

Weight

4.5 tons
