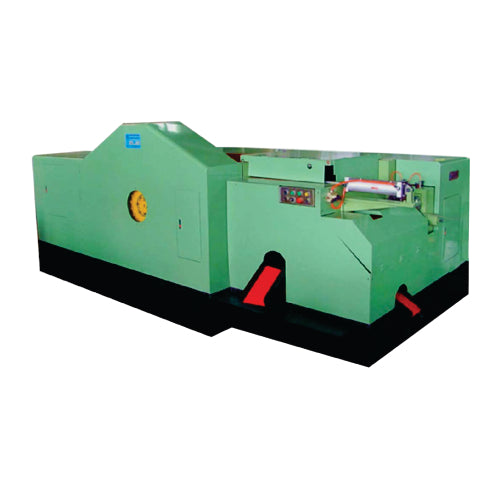

Z41 Series Automatic Nut Cold Former
  • Vendor:

    Ramana Machines

Description

APPLICATION

This series features a fully horizontal design with a multi-stage arrangement. The entire process, including feeding, cutting, pushing, clamping, and cold heading, is conducted automatically. The equipment is user-friendly, offering ease of operation, adjustment, maintenance, and assembly, while also being energy-efficient. It is ideal for the reliable production of high-quality, irregularly shaped nuts.

MAIN TECHNICAL PARAMETER

Models

Z41-20

Z41-20

Z41-22

Z41-24

Z41-24

Z41-24

Z41-27

Z41-27

Product Specification

M16-M20

M16-M20

M16-M22

M16-M24

M16-M24

M16-M24

M16-M27

M16-M27

Forging station

4

5

4

4

5

6S

4

5

Cut-off Diameter (mm)

22

22

25

28

28

32

30

32

Cut-off Length (mm)

60

60

60

60

60

68

60

60

Kick-out Length (mm)

45

45

45

50

50

80

50

60

Cold Heading Slider Stroke

165

165

165

180

180

180

240

240

Dies Pitch (mm)

140

140

140

150

150

160

160

160

Productivity (pic/min)

65

65

60

50

50

45-50

50

45

Main Moter (kw)

37

45

45

55

75

90

75

90

Dimension (m)

5.8x2.8x2.3

5.8x2.8x2.3

5.8x2.8x2.3

3.2x5.7x2.3

3.2x5.7x2.3

6.6x3.5x2.5

3.2x5.7x2.3

3.2x5.7x2.3

Weight (kg)

~25000

~28000

~29000

~30000

~32000

~55000

~36500

~42000
