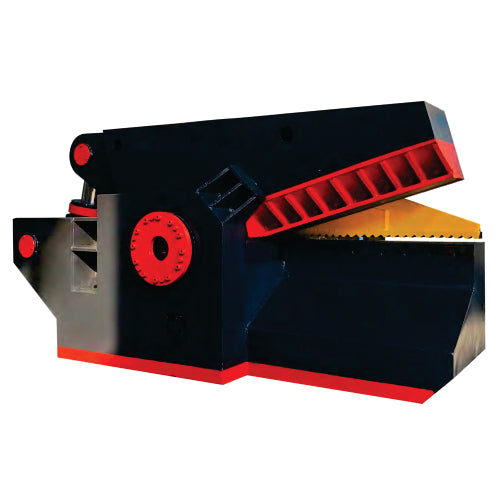

Q43 SERIES HYDRAULIC ALLIGATOR SHEARS
Couldn't load pickup availability
Description
APPLICATIONS
The Q43 Series Hydraulic Alligator Shears are designed for cold cutting of metal profiles and structures with various cross-sectional shapes, processing them into qualified charge. These shears are ideal for the steel industry, nonferrous metals industry, scrap processing and distribution centers, renewable resource processing enterprises, and scrap car dismantling businesses.
FEATURES
· Integrated mechanical, electrical, and hydraulic control system, allowing operation to start and stop at any position for easy overload protection. Can also be equipped with a diesel engine for backup power.
· Offers both single and continuous cutting options as needed.
· No need for foot bolts during installation, making it easy to adjust the production setup or equipment layout.
TECHNICAL SPECIFICATIONS
|
Model |
Max Cutting Force (ton) |
Blade Length (mm) |
Max Cutting Size (mm) |
Shearing Frequency (min) |
Main motor (kw) |
|
Q43-630 |
63 |
600/800 |
35x35/40 |
10-12 |
7.5 |
|
Q431200 |
120 |
600/800 |
50x50/55 |
10-12 |
15 |
|
Q43-1600 |
160 |
700/1200 |
55x55/63 |
8-10 |
18.5 |
|
Q43-2000 |
200 |
800/1000 |
65x65/70 |
8-10 |
22 |
|
Q43-2500 |
250 |
1000/1200 |
70x70/80 |
6-8 |
2x15 |
|
Q43-3150 |
315 |
100/1200 |
75x75/85 |
6-8 |
2x18.5 |
|
Q43-4000 |
400 |
1500 |
90x90/100 |
4-8 |
2x22 |
|
Q43-5000 |
500 |
1600 |
100x100/110 |
4-8 |
2x30 |
|
Q43-6000 |
600 |
1800 |
100x100/120 |
4-8 |
2x37 |
|
Q43Y-400 |
40 |
500 |
25x25/30 |
8-10 |
5.5 |
|
Q43Y-800 |
80 |
800 |
30x30/35 |
8-10 |
7.5 |
