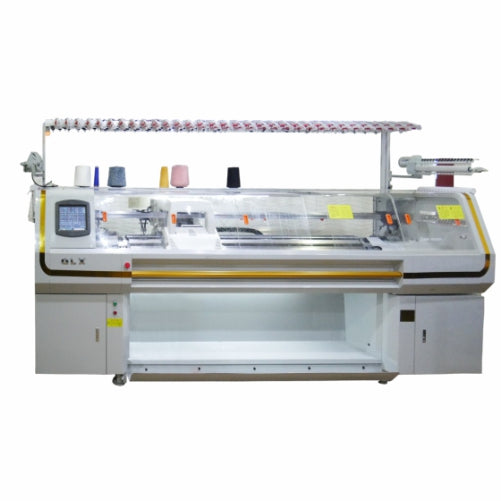

Fully Computerized GLX 2 & 3 System Flat Knitting Machine

Gauge

14G, 16G, 18G

Knitting Width

36”,52",66”,72”,80”

Knitting Speed

Controlled by servo motor with 32 sections speed optional, max 1.4m/s

Knitting System

Single carriage double system & three system with high position roller

Small Carriage system

We adopt latest 5 inches carriage per system. Now carriage is small with ultra fast speed and high efficiency. Now Total carriage size is 17"

Knitting Function

Single needle control, No - Dash jacquard, 3D knitting structures.

Racking System & Encoder

Controlled by AC servo motor racking within 2 inches and with fine micro adjustable function. Advanced encoder adopted

Additional oiler system

Automatic oiler for needle bed & carriage

Transfer Cam

Combined type transfer cam, both single and double system all can transfer separately or synchronously, also can transfer by one system, knitting by another, which will achieve high efficiency

Cam plate

Machine adopts motor type of cam plate design of integrated modules adjusted and optimized of internal structure while improving the stability of the head working.

Dynamic Stitch

Different tightness is allowed on the same line without problem of varying lengths while knitting.

Technology of stitch motor closed-loop

Intelligently controlling the working condition of stitch motor is phased with this technology, avoiding the problem of wrong tightness while knitting

Sinker System

Controlled by stepping motor, adjustable to different knitwear, achieve various results of narrowing and widening.

Intelligent Traction Control

Provide kinds of traction solve the problem that traction maybe lacking on thick- needle machine release traction to make stitch transfer more stable

Take down Roller

Computerised, controlled by stepping motor,32 levels section of tension with adjustable scope: 0-100.

Yarn Carrier

2x16 yarn feeders on both sides of 1 guide rail of 8, switchover on any position of needle bed (special intarsia yarn feeders optional).

Protection

The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device.

Function of Intelligent Computer Files

Create parameters like thickness, traction and speed with intelligent plate making program, save time for creating parameters on the machine

Power

Single-phase 220V, adopt advanced CMOS technology enabling memorizing at the instant of power outage and restoring of knitting thereafter.
