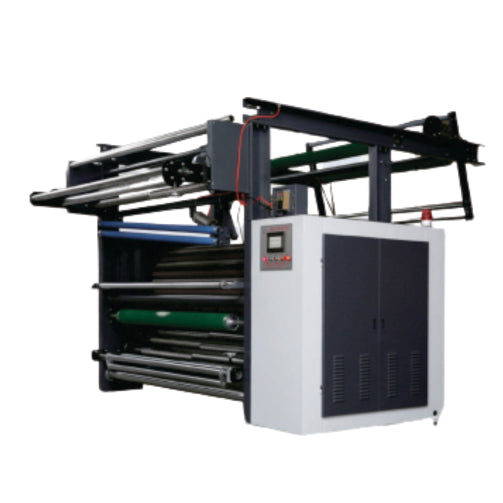

ME409-24 GEAR TYPE RAISING MACHINEME409-24 GEAR TYPE RAISING MACHINE
  • Vendor:

    Ramana Machines

Description

PRODUCT DESCRIPTION

This machine features 24 Raising Rollers and utilizes a gear-type drive system. It is equipped with PLC, inverter, and touch screen control, making it ideal for processing various types of woven and knitted fabrics, including woolen fabrics and artificial furs. This is our latest model of the raising machine.

TECHNICAL FEATURES

·        The machine comes with a touch screen interface and PLC control, with speed regulated by multiple inverters simultaneously.

·        Fabric speed, tension, cylinder, and raising roller speed can be adjusted across a variable range.

·        The needle roller uses a gear-type transmission, providing high torque, stability, and low noise.

·        The motor gear transmission is equipped with a single frequency control motor, ensuring a simple structure and easy maintenance.

·        Features zero-point start, automatic fabric guiding, and error alarm diagnostics.

·        Each machine in the production line can operate independently, with complete synchronization between them.

·        The PLC controller can store up to 500 technical parameters.

TECHNICAL DATA

Install power

15.6 kw

Drum Diameter

850 mm

Effective energy consumption

10 kw

Drive mode

Gear type

Adjustable production speed

10-26 m/min

Drum speed

90-120 rpm

Working width

2000/2200/2500mm

Overall dimension 2000mm

4000x4000x3050mm

Raising roller installed

24

Overall dimension 2200mm

4200x4000x3050mm

Diameter Raising roller

60 mm

Overall dimension 2500mm

4500x4000x3050mm

Touch Screen Control

Yes
