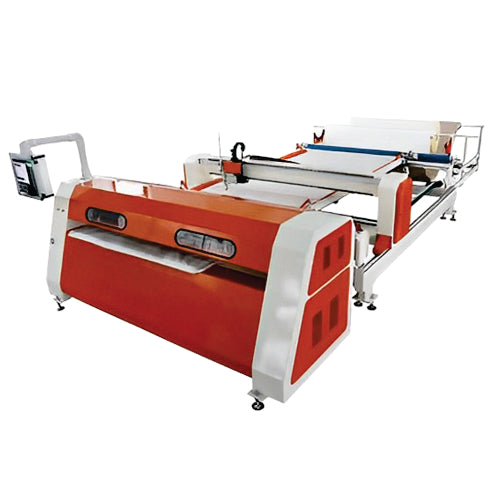

RN-6 Fully Automatic & Computer Controlled SIngle-Needle Quilting MACHINE
Couldn't load pickup availability
Description
APPLICATIONS
1. Integrated Functions: Capable of integrating feeding, laboring, quilting, and cutting into a seamless process.
2. Advanced Features: Equipped with automatic tangent, broken line detection, infrared protection, backfilling, and quilting functions.
3. Automatic Oil Supply System: Effectively lubricates the machine’s components, extending the service life of the machine.
4. Customization Options: Includes needle distance selection, angle correction, and pattern scaling for precise adjustments.
5. Electrical Synchronization: Utilizes electrical synchronization for the up and down heads, ensuring higher precision and fewer errors.
6. Imported Large Rotary Shuttle: Eliminates the need for frequent bottom line changes, enhancing efficiency.
7. Powerful Computer Memory: The advanced computer system handles complex graphics with high accuracy. Intermittent start allows continuous quilting of patterns, with low noise, minimal vibration, and stable operation.
8. 24-Hour Operation: The machine is designed for continuous 24-hour operation, ensuring trouble-free performance.
9. Certifications: The product is certified with both ISO9001 and CE double certification.
10. Wide Application: Ideal for the continuous automatic production of Simmons mattresses, quilts, and sofa cushion products.
TECHNICAL PARAMETERS
|
Parameters Type |
DN-6-2224 |
DN-6-2426 |
|
Machine dimension (L*W*H) |
9400x4200x1900 |
9600x4400x1900 |
|
Max Quit Size |
2200*2400 |
2400*2600 |
|
Sewing-Machine |
Dingnuo special direct drive head, high speed silent refueling, automatic rise |
|
|
Auxiliary Configuration |
Automatic trimming automatic tension frame, automatic feeding, automatic cutting |
|
|
Quilting Thick |
50mm (different materials have different seam thickness, please consult |
|
|
Maximum designed speed |
3500 (SPM) |
|
|
Stitch Length |
(Pitch) 2~7mm |
|
|
Applicable product raw materials |
Mattresses, sofa cushions, quilts of various materials |
|
|
Needle no |
18~23# Single needle, double thread lock stitch, large hook |
|
|
Power |
AC 380v 50Hz or 9kw + |
|
|
Weight |
4000kg+ |
|
|
Output |
40-120m/h |
|
|
Operating System |
intelligent digital control |
windows system |
|
Data interface |
A serial port connection, support flower U- disk reading |
|
|
Remarks |
means in stock (machines for processing different types of products and different sizes can be customized) |
|
