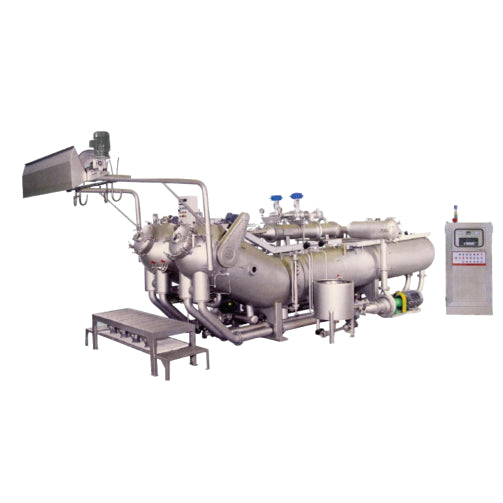

RM-DSL Caterpillar Inner Running Dyeing Machine
  • Vendor:

    Ramana Machines

Description

FEATURES

·        Low Bath Ratio: Operates efficiently with a bath ratio of 1:4-8.

·        Smooth Operation: Functions seamlessly even at low nozzle pressure (0.5-1 kg/cm²).

·        Ideal for Spandex and Low-Tension Fabrics: Specifically designed to meet the running requirements of delicate and stretchy fabrics.

·        Compact Design: Features a short machine body with suitable loading capacity, low liquor ratio, and easy operation.

·        Enhanced Design: Retains the benefits of downward-running dyeing machines while incorporating advanced features for water, time, and energy savings.

·        Eco-Friendly and Cost-Effective: Low operating costs and environmentally friendly performance.



Item Model

RM-SL250

RM-SL500

RM-SL1000

Number of tubes / Chamber

1/2

2/4

4/8

Max. Capacity

KG

175-250

350-500

700-1000



LB

385-550

770-1100

1545-2200

Liquor Ration

1:4-8

(°C) Max Working Temperature

140°C

Speed (RPM)

0 ~ 600

(20°C-140°C). Heating Rate (Min)

35

(20°C-140°C). Heating Rate (Min)

30

(KW) Total Motor Total Power

26.8

44.5

88

Space Required (mm)

Length

L1

6990

6990

6900



L2

8090

8090

8090

Width

1700

3100

6050



H1

2300

2300

2400

Height

H2

3080

3080

3180
