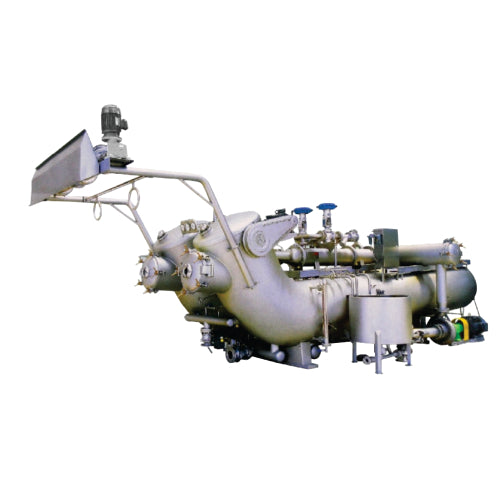

RM-SL Caterpillar Inner Running Dyeing Machine
Couldn't load pickup availability
Description
FEATURES
· Patent Design: Optimized for normal knitting and spandex fabrics, such as cotton+lycra, rayon+lycra, polyester+lycra, nylon+lycra, and more.
· Overflow and Jet Flow System: Provides selectable options suitable for knitting fabrics ranging from 50-600g/m².
· Advanced Delivery Tube: Reduces fabric tension and prevents crease marks.
· Short Chamber Design: Features a short fabric length, low liquor ratio, and user-friendly operation.
· Low Tension and Shrinkage: Ensures low height, low tension, and minimal shrinkage, making it easy to achieve the desired final fabric weight.
· Durable Tank Body: Constructed from A-class, highly corrosion-resistant stainless steel (A240-316L) sourced from Europe or Japan.
|
Item Model |
RM-SL100 |
RM-SL250 |
RM-SL500 |
RM-SL1000 |
||
|
Number of tubes / Chamber |
1/2 |
1/2 |
2/4 |
4/8 |
||
|
Max. Capacity |
KG |
70-100 |
175-250 |
350-500 |
700-1000 |
|
|
|
LB |
155-220 |
385-550 |
770-1100 |
1545-2200 |
|
|
Liquor Ration |
1:6-8 |
|||||
|
(°C) Max Working Temperature |
140°C |
|||||
|
Speed (RPM) |
Jetflow |
0 ~ 450 |
||||
|
Overflow |
0 ~ 250 |
|||||
|
(20°C-140°C). Heating Rate (Min) |
35 |
|||||
|
(20°C-140°C). Heating Rate (Min) |
30 |
|||||
|
(KW) Total Motor Total Power |
15 |
19.5 |
37.5 |
69.5/88 |
||
|
Space Required (mm) |
Length |
L1 |
4700 |
6990 |
6990 |
6900 |
|
|
L2 |
5800 |
8090 |
8090 |
8090 |
|
|
Width |
1700 |
1700 |
3100 |
6050 |
||
|
|
H1 |
2300 |
2300 |
2300 |
2400 |
|
|
Height |
H2 |
3080 |
3080 |
3080 |
3180 |
|
